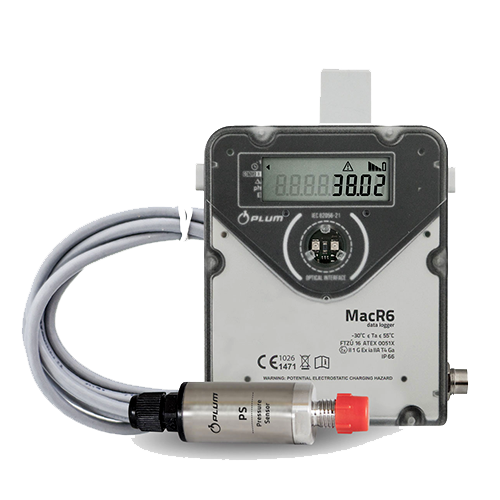

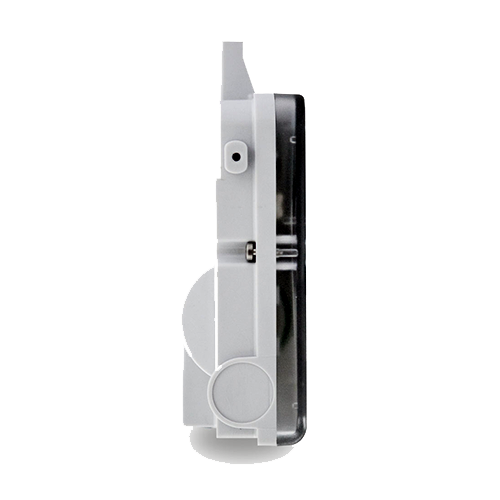

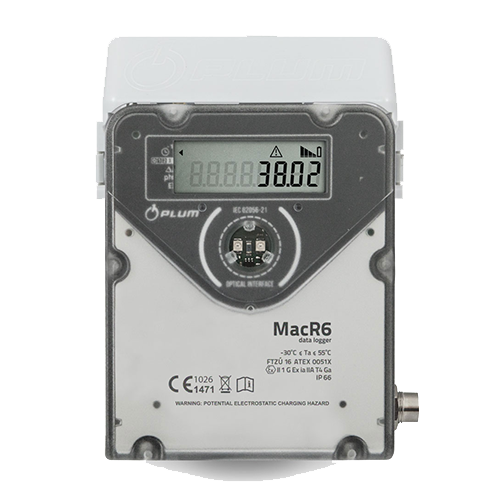

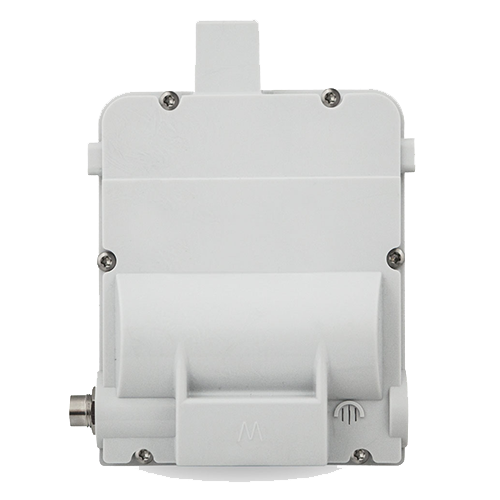

MacR6-Z0-P
EVC & Data Loggers
Battery pressure monitor with integrated GSM modem registering up to 2 pressures simultaneously.
Quick Configuration
Quick and simple configuration using Android application.
Alarm Monitoring
Immediate report sending in alarm situations.
SCADA
SCADA system ready.
Description
MacR6-Z0-P is a simplified pressure monitoring device with a capacity for up to 2 pressure monitoring channels. Data is transmitted directly to a SCADA system thanks to the built-in GSM/GPRS 2G/3G modem. The estimated battery life of the device is 5 years with 1 data transmission per day. A fast configuration of the device made through an Android app. When programmed pressure ranges are out of limits, it automatically sends a report to the gas station service.
Technical Specifications
Type | Pressure Logger |
Atex Certification | Zone 0 |
Pressure Range | 0.8 - 100 bar (optional) |
Modem | Inbuilt GSM/GPRS |
Battery Life | Up to 5 years |
